SMART YARDER
Step up from ground base with easy logging in every season.
Description
The APEX HY202 Smart Yarder is a guyless two drum yarder. The HY202 uses direct drive, hydraulic power to produce superior pulling power and line speed.
The energy efficient, standalone hydraulic system uses regenerative power to create fuel savings and minimizes heat generation in the base machine hydraulic system.
The drum set can be operated independently or interlocked. Direct drive hydraulics means no reduction boxes, gears, clutches, or water brakes, saving thousands in repairs
and maintenance.
Lagged drums extend rope life, and both run 3/4” rope for extra lift in settings with minimal deflection.
An intuitive control system has been designed for ease of use and operator comfort, especially for ground-based crews looking to convert to cable logging.
Live drum camera views and drum set data are displayed on a LED touch screen.
Specification
Main rope | 3/4” |
Tail rope | 3/4” |
Main capacity | 450m |
Tail capacity | 900m |

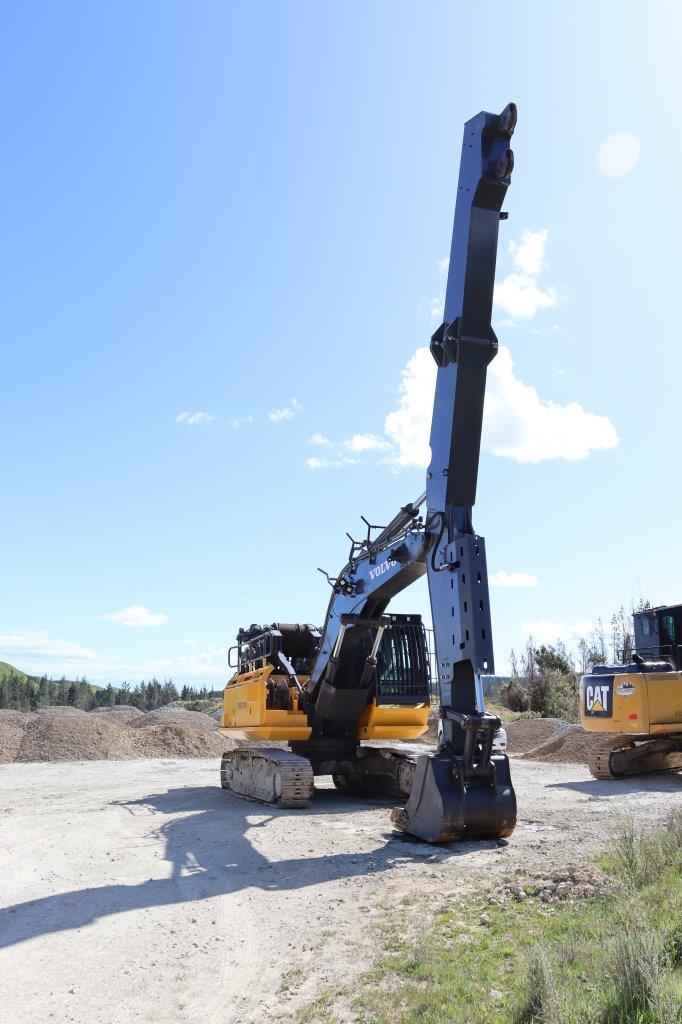

Tower | 11.5m |
Base Machine | >30T |
Pulling power | >20T |
